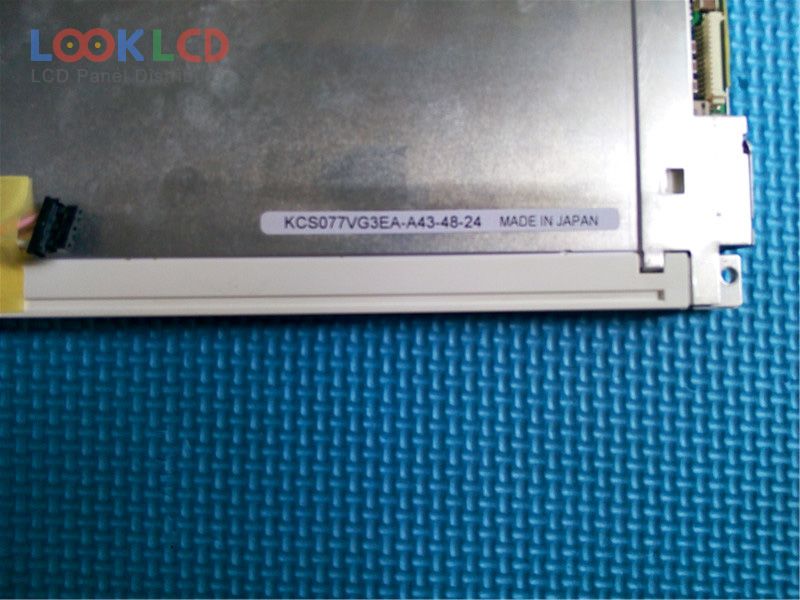

| PartNumber | KCS077VG2EA-A43 |
| Brand | Kyocera |
| Size | 7.7 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 25:1 |
| Colors | Color |
| Backlight | CCFL |
| Interface | Parallel Data |
| Panel Brand | Kyocera |
| Panel Model | KCS077VG2EA-A43 |
| Panel Type | CSTN-LCD , LCM |
| Panel Size | 7.7 inch |
| Display Mode | STN, Normally Black, Transmissive |
| Active Area | 157.42×118.06 mm |
| Outline | 199×147×10.5 mm |
| Surface | |
| Contrast Ratio | 25:1 (Typ.) |
| Display Colors | Color |
| Response Time | 300 (Typ.)(Tr+Td) |
| Viewing Angle | |
| Frequency | 75Hz |
| Lamp Type | 2 pcsCCFL |
| Signal Interface | Parallel Data (8-bit), 29 pins |
