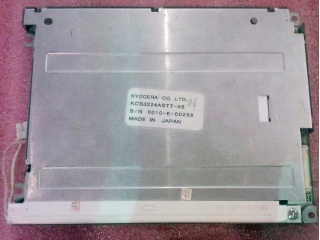

| PartNumber | KCS3224ASTT-X6 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | CSTN-LCD , LCM |
| Brightness | |
| CR | 25:1 |
| Colors | Color |
| Backlight | - |
| Interface | Parallel |
| Diagonal Size | 5.7 inch |
| Pixel Format | 320(RGB)×240 [QVGA] 70PPI |
| Active Area | 115.2(H)×86.4(V) mm |
| Luminance | - |
| View Direction | - |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) |
| Support Color | Color |
| Weight | - |
| Frame Rate | 75Hz |
| Interface Type | Parallel Data (1ch, 8-bit) Connector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | KCS3224ASTT-X6 |
| Type | CSTN-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | - |
| Contrast Ratio | 25:1 (Typ.) (TM) |
| Response Time | 220/110 (Typ.)(Tr/Td) |
| Operating Mode | STN, Normally Black, Transmissive |
| Light Source | |
| Designed For | Industrial |
| Touch Panel | Without |
