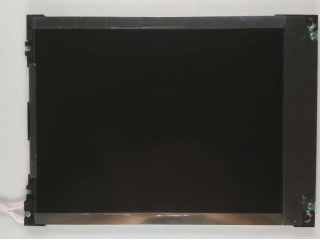

| PartNumber | KHS072VG1MB-G40 |
| Brand | Kyocera |
| Size | 7.2 |
| Application | Industrial |
| Resolution | 640×480 |
| Composition | CSTN-LCD, LCM |
| Brightness | |
| CR | 5:1 |
| Colors | Color |
| Backlight | CCFL |
| Interface | |
| Model | KHS072VG1MB-G40 |
| Diagonal Size | 7.2 inch |
| Type | CSTN-LCD, LCM |
| Pixel Format | 640(RGB)×480 [VGA] 111PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 145.9(H)×109.42(V) mm |
| Outline Dim. | 179.3(H)×130.5(V) ×6.5(D) mm |
| Bezel Area | 147.9(H)×111.42(V) mm |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 5:1 (Typ.) (RF) |
| View Direction | - |
| Response Time | 200/150 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/40/30 (Typ.)(CR≥2) |
| Operating Mode | STN, Normally Black, Transflective |
| Support Color | Color |
| Light Source | CCFL [1 pcs] , 40K hours , Optional |
| Weight | - |
| Designed For | Industrial |
| Frame Rate | 75Hz |
| Touch Panel | Without |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
