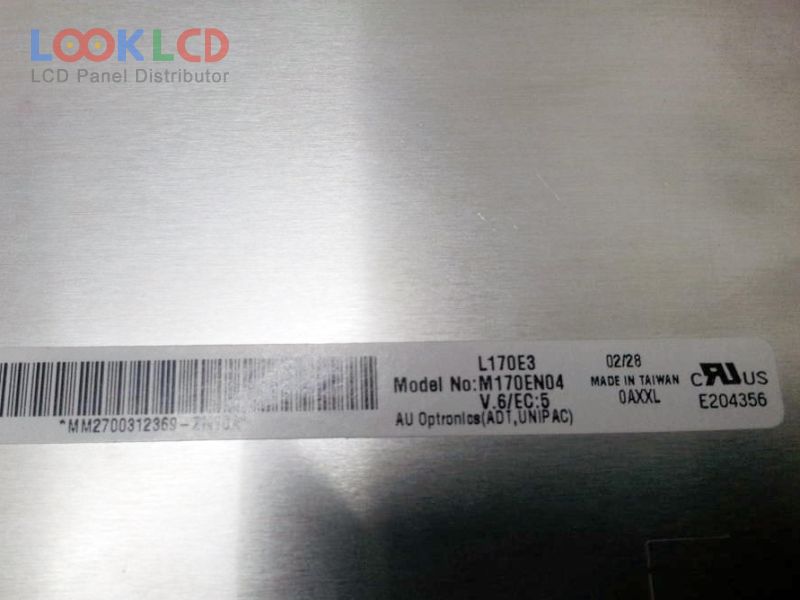

| PartNumber | L170E3 EC-5 |
| Brand | AUO |
| Size | 17.0 |
| Application | DMPC |
| Resolution | 1280(RGB)×1024 , SXGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | ACER |
| Panel Model | L170E3 EC-5 3 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 337.92×270.336 mm |
| Outline | 383.5×306×20 mm |
| Surface | |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 25/15 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
