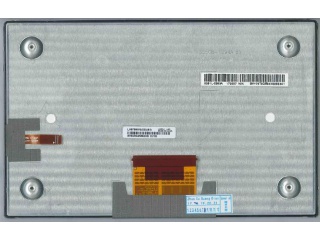

| PartNumber | LA070WV6-SD02 |
| Brand | LG Display |
| Size | 7.0 |
| Application | Automotive Display |
| Resolution | 800(RGB)×480, WVGA, 133PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 610 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 5S2P |
| Interface | Parallel |
| Panel Brand | LG Display |
| Panel Size | 7.0" |
| Display Area | 152.4(W)×91.44(H) mm |
| Outline Size | 166.6(W)×105.8(H) ×10.5(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 60% NTSC |
| Frequency | 60Hz |
| Panel Weight | 180/185g (Typ./Max.) |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 66 pins FPC |
| Input Voltage | 3.3/13.0/18.5/-7.5V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Environment | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| Panel Model | LA070WV6-SD02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 155.0(W)×94.0(H) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 15/10 (Typ.)(Tr/Td) |
| Lamp Type | 5S2P WLED , 20K hours , Without Driver |
| Touch Screen | Without |
