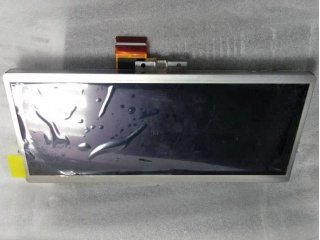

| PartNumber | LA103DV1-SL01 |
| Brand | LG Display |
| Size | 10.3 |
| Application | Automotive Display |
| Resolution | 1280(RGB)×480, DVGA, 133PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 650 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 8S4P |
| Interface | |
| Panel Brand | LG Display |
| Panel Size | 10.3" |
| Display Area | 243.84(W)×91.44(H) mm |
| Outline Size | 257.7(W)×126.3(H) ×20.9(D) mm |
| Viewing Angle | - |
| Best View on | Symmetry |
| Display Colors | 16.7M 85% NTSC |
| Frequency | 75Hz |
| Weight | 490/495g (Typ./Max.) |
| Panel Model | LA103DV1-SL01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 247.9(W)×94.44(H) mm |
| Surface | - |
| Contrast Ratio | 1000:1 (Min.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | 8S4P WLED , Without Driver |
| Touch Screen | Without |
