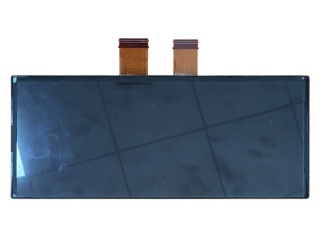

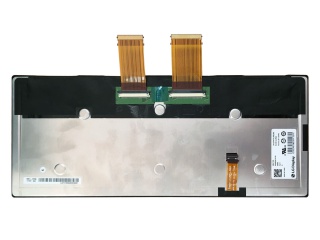

| PartNumber | LA123WF4-SR03 |
| Brand | LG Display |
| Size | 12.3 |
| Application | Automotive Display |
| Resolution | 1920×720 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 800:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | RSDS |
| Model | LA123WF4-SR03 |
| Diagonal Size | 12.3 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×720 167PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 292.032(H)×109.512(V) mm |
| Outline Dim. | 310(H)×128(V) ×10.75(D) mm |
| Bezel Area | 296.03(H)×113.5(V) mm |
| Treatment | Hard coating |
| Luminance | 600 cd/m² (Min.) |
| Contrast Ratio | 800:1 (Min.) (TM) |
| View Direction | Symmetry |
| Response Time | 30 (Max.)(G to G); 25 (Typ.)(MPRT) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 77% NTSC |
| Light Source | WLED [11S4P] , 10K hours , W/O Driver |
| Weight | 385/400g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | RSDS (2 Channel) , 110 pins FPC |
| Power Supply | 3.3/13.0V (Typ.)(VCC/VDD) |
| Environment | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| C123HAN01.0 | AUO | 12.3 | 1920×720 |
| C123HAN01.1 | AUO | 12.3 | 1920×720 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LAM1233548D | JDI | 12.3 | 1920×720 |
| LD123UX1-SMA1 | LG Display | 12.3 | 1600×1200 |
| LQ123K1LG03 | SHARP | 12.3 | 1280×480 |
| LQ123K3LG01 | SHARP | 12.3 | 1280×480 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TX31D200VM0BAA | KOE | 12.3 | 1280×480 |
