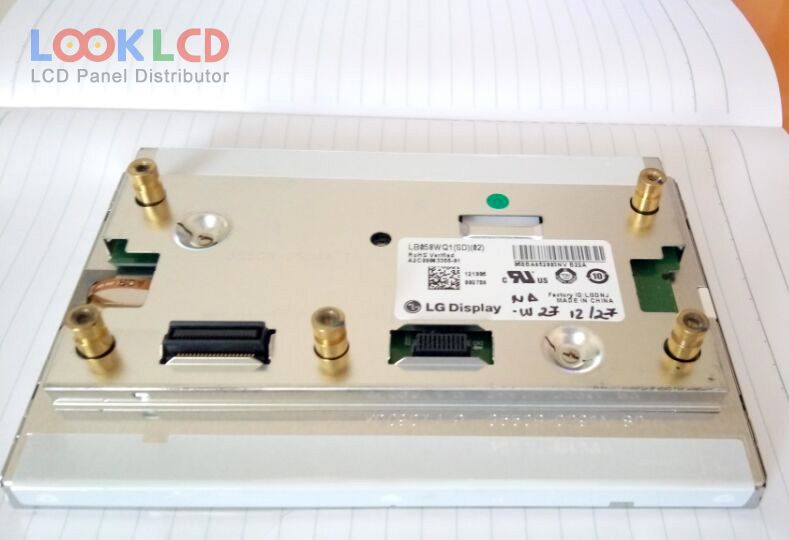

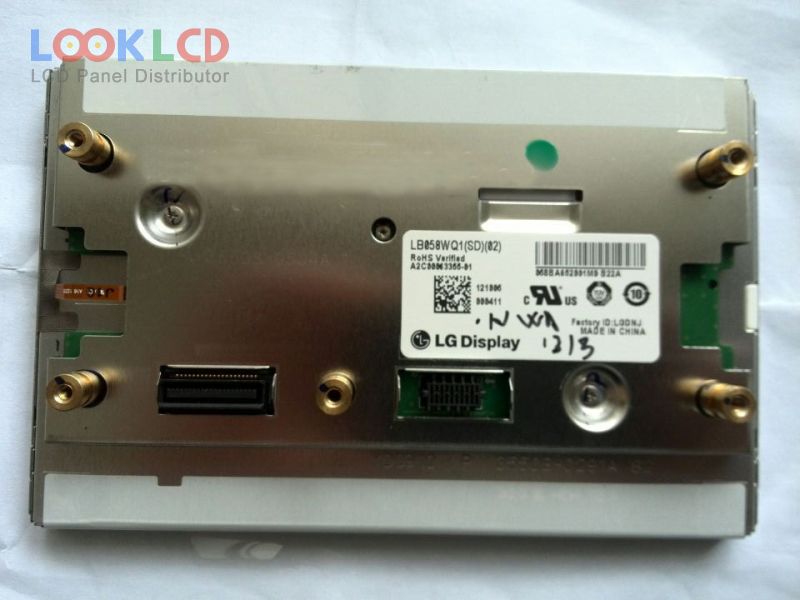

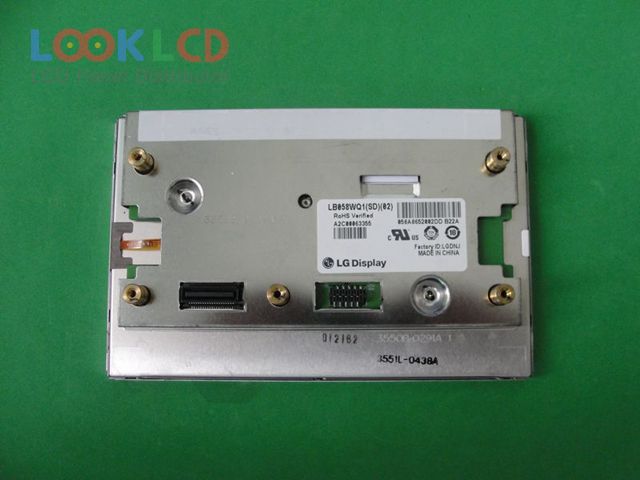

| PartNumber | LB058WQ1-SD02 |
| Brand | LG Display |
| Size | 5.8 |
| Application | CNS |
| Resolution | 400(RGB)×240 , WQVGA |
| Composition | LCM |
| Brightness | 470 cd/m² (Min.) |
| CR | 630:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | LG Display |
| Panel Model | LB058WQ1-SD02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 5.8 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 126.36×75.84 mm |
| Outline | 152×97 mm |
| Surface | Antiglare, Antireflection |
| Contrast Ratio | 630:1 (Min.) |
| Display Colors | 262K (6-bit) |
| Response Time | 15/14 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/30/30 (Typ.)(CR≥100)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
