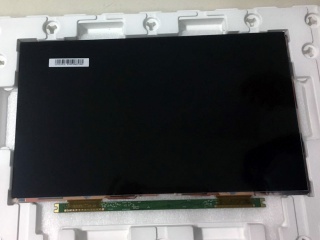

PartNumber | LC133LF2L03 |
Brand | PANDA |
Size | 13.3 |
Application | Laptop |
Resolution | 1920×1080 |
Composition | Oxide TFT-LCD, CELL |
Brightness | |
CR | 1000:1 |
Colors | 16.7M |
Backlight | No |
Interface | |
Model | LC133LF2L03 |
Diagonal Size | 13.3 inch |
Type | Oxide TFT-LCD, CELL |
Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
Configuration | RGB Vertical Stripe |
Active Area | 293.76(H)×165.24(V) mm |
Outline Dim. | 301.96(H)×175.8(V) ×1.02(D) mm |
Bezel Area | - |
Treatment | Antiglare, Hard coating (3H) |
Luminance | 0 cd/m² |
Contrast Ratio | 1000:1 (Typ.) (TM) |
View Direction | Symmetry |
Response Time | 25 (Typ.)(Tr+Td) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Operating Mode | FFS, Normally Black, Transmissive |
Plate Thickness | 0.40+0.40 mm |
Transmittance | 4.3% (Typ.)(with Polarizer) |
Support Color | 16.7M 99% sRGB |
Light Source | No B/L , With LED Driver |
Form Style | - |
Designed For | Laptop |
Frame Rate | 60Hz |
Touch Panel | Without |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
