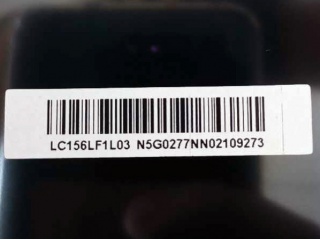

| PartNumber | LC156LF1L03 |
| Brand | PANDA |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Composition | Oxide TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | - |
| Colors | 262K |
| Backlight | No |
| Interface | eDP |
| Panel Brand | PANDA |
| Panel Model | LC156LF1L03 |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Size | 354.36(W)×204.04(H) ×1.076(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | - |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Glass Depth | 0.40+0.40 mm |
| Transmissivity | 6.5% (Typ.) |
| Display Colors | 262K 47% NTSC |
| Lamp Type | No B/L , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COGBuilt-in 4 source + 2 gate chips |
| Shape Style | - |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
