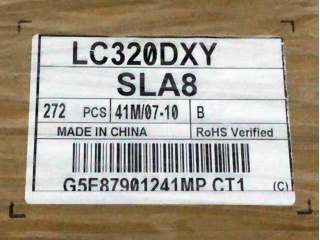

| PartNumber | LC320DXY-SLA8 |
| Brand | LG Display |
| Size | 32.0 |
| Application | TV Sets |
| Resolution | 1366×768 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 1100:1 |
| Colors | 16.7M |
| Backlight | No B/L |
| Interface | LVDS |
| Manufacturer | LG Display |
| Screen Size | 32.0 inch |
| Pixel Number | 1366(RGB)×768 (WXGA) 49PPI |
| Active Area(mm) | 697.685 × 392.256 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Good View at | Symmetry |
| Glass Thickness | - |
| Color Depth | 16.7M 72% NTSC |
| Mass | 860/910g (Typ./Max.) |
| Refresh Rate | 60Hz |
| Driver IC list | Built-in COF 2 source chips |
| Signal Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Model Name | LC320DXY-SLA8 |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 715 × 411 × 1.2 (H×V×D) |
| Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| Contrast Ratio | 1100 : 1 (Typ.) (TM) |
| Response | 7 (Typ.)(G to G) ms |
| Work Mode | IPS, Normally Black, Transmissive |
| Transmissivity | 5.98% (Typ.)(with Polarizer) |
| Used for | TV Sets |
| Touchscreen | Without |
