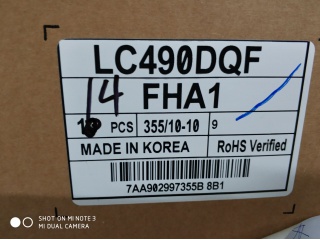

| PartNumber | LC490DQF-FHA1 |
| Brand | LG Display |
| Size | 49 |
| Application | TV Sets |
| Resolution | 3840×2160 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1300:1 |
| Colors | 1.07B |
| Backlight | WLED , 50K hours , No Driver |
| Interface | V-by-One |
| Manufacturer | LG Display |
| Model Name | LC490DQF-FHA1 |
| Screen Size | 49 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 3840(RGB)×2160 (UHD) 90PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 1073.78 × 604 (H×V) |
| Outline(mm) | 1100.8 × 631.5 (H×V×D) |
| Luminance | - |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Response | 5 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 1.07B 83% NTSC |
| Mass | - |
| Used for | TV Sets |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | V-by-One 16 lane , 97 pins Connector |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 50 °C |
