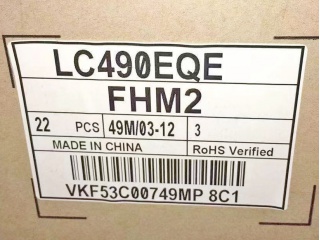

| PartNumber | LC490EQE-FHM2 |
| Brand | LG Display |
| Size | 49 |
| Application | TV Sets |
| Resolution | 3840(RGB)×2160, UHD, 90PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1200:1 |
| Colors | 1.06B |
| Backlight | WLED |
| Interface | V-by-One |
| Panel Brand | LG Display |
| Panel Size | 49" |
| Display Area | 1073.78(W)×604(H) mm |
| Outline Size | 1097.2(W)×630(H) ×28.9(D) mm |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 1.06B 72% NTSC |
| Frequency | 60Hz |
| Panel Weight | 10.2/11Kgs (Typ./Max.) |
| Signal Interface | V-by-One 8 lane , 51 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | LC490EQE-FHM2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 1078.4(W)×608.6(H) mm |
| Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 6 (Typ.)(G to G) |
| Lamp Type | WLED , 50K hours , Without Driver |
| Touch Screen | Without |
