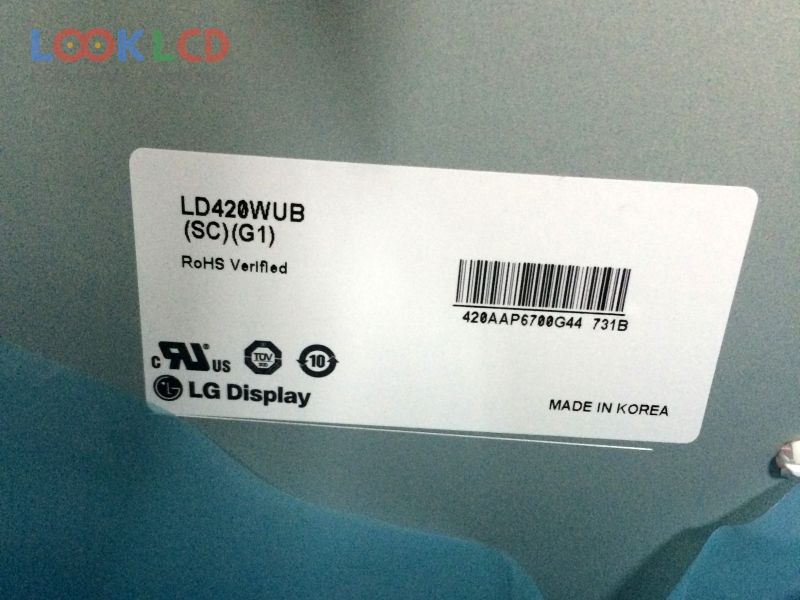

| PartNumber | LD420WUB-SCG1 |
| Brand | LG Display |
| Size | 42 |
| Application | PID |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 1200:1 |
| Colors | 16.7M/1.06B |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LD420WUB-SCG1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 42 inch |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Active Area | 930.24×523.26 mm |
| Outline | 956.4×549.4×54.5 mm, Videowall Seam 26.2 mm |
| Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Contrast Ratio | 1200:1 (Typ.) |
| Display Colors | 16.7M/1.06B (8-bit / 8-bit + FRC) |
| Response Time | 10 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | CCFLEmbedded (Inverter) |
| Signal Interface | LVDS (2 ch, 8/10-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
