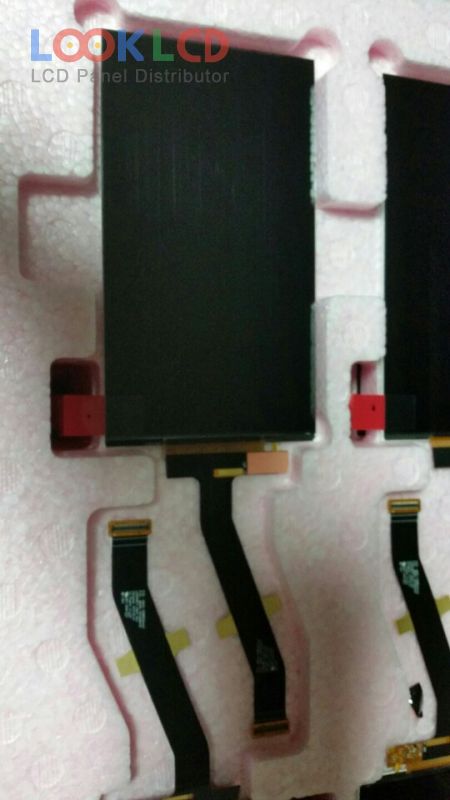

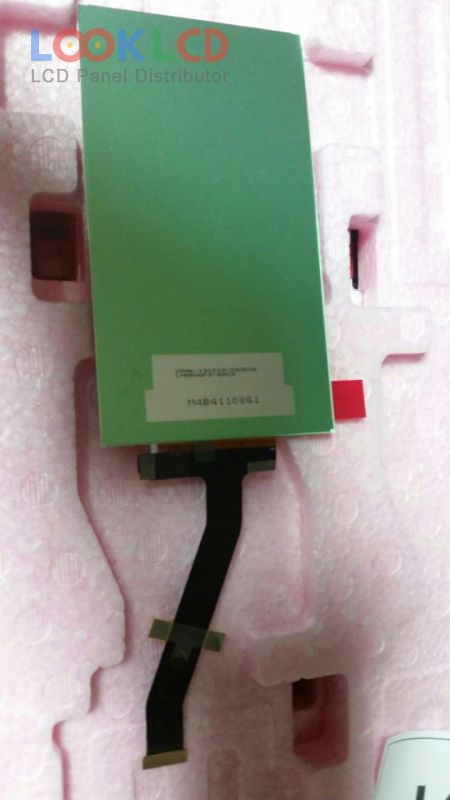

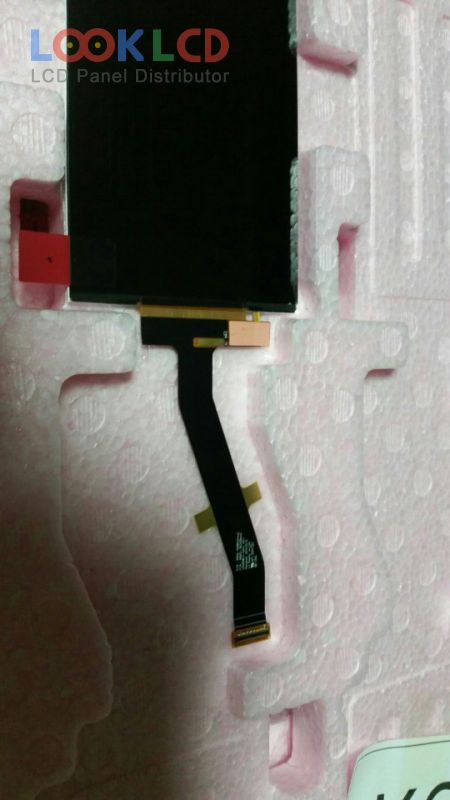

| PartNumber | LH550WF2-SD03 |
| Brand | LG Display |
| Size | 5.5 |
| Application | MPH |
| Resolution | 1080(RGB)×1920 , FHD |
| Composition | LCM |
| Brightness | 460 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | MIPI |
| Panel Brand | LG Display |
| Panel Model | LH550WF2-SD03 |
| Panel Type | LTPS TFT-LCD , LCM |
| Panel Size | 5.5 inch |
| Display Mode | AH3-IPS, Normally Black, Transmissive |
| Active Area | 68.04×120.96 mm |
| Outline | 70.94×128.01×1.55 mm |
| Surface | |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193170% |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S2PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 50 pins |
| Input Voltage | 1.8/5.0/-5.0V (Typ.)(VDD/VAN/VPG) |
