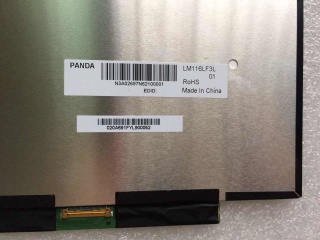

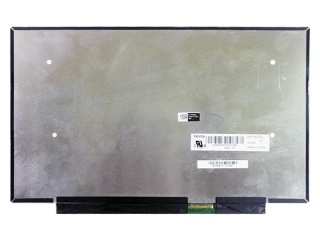

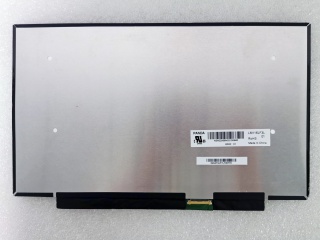

| PartNumber | LM116LF3L01 |
| Brand | PANDA |
| Size | 11.6 |
| Application | Pad & Tablet |
| Resolution | 1920×1080 |
| Composition | Oxide TFT-LCD , LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 11.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 190PPI |
| Active Area | 256.32(H)×144.18(V) mm |
| Bezel Area | - |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 16.7M 100% sRGB |
| Weight | 215g (Max.) |
| Frame Rate | 60Hz |
| Interface Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C |
| Model | LM116LF3L01 (NCP000A) |
| Type | Oxide TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 268(H)×168(V) ×3(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Pad & Tablet |
| Touch Panel | Without |
