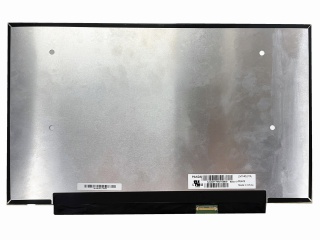

| PartNumber | LM140LF3L |
| Brand | PANDA |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 157PPI |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | PANDA |
| Panel Model | LM140LF3L (NCP0035) |
| Panel Size | 14.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.312(W)×173.988(H) mm |
| Bezel Opening | - |
| Outline Size | 315.81(W)×197.57(H) ×2.95(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | FFS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B140HAT02.0 | AUO | 14.0 | 1920×1080 |
| LP140QH1-SPB1 | LG Display | 14.0 | 2560×1440 |
| LP140WH1-TLA3 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LTN140AT19-201 | Samsung | 14.0 | 1366×768 |
| LTN140AT21-802 | Samsung | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
| N140FGE-EA2 | Innolux | 14.0 | 1600×900 |
| N140FGE-L31 | Innolux | 14.0 | 1600×900 |
