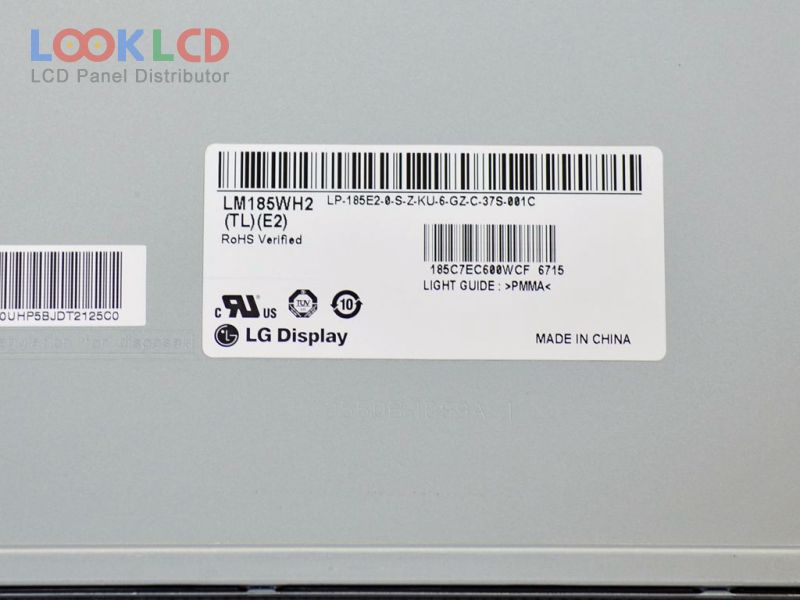

| PartNumber | LM185WH2-TLE2 |
| Brand | LG Display |
| Size | 18.5 |
| Application | DMPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LM185WH2-TLE2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 18.5 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 409.8×230.4 mm |
| Outline | 430.4×254.6×10.7 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit) |
| Response Time | 1.1/3.9 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 11S2PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
