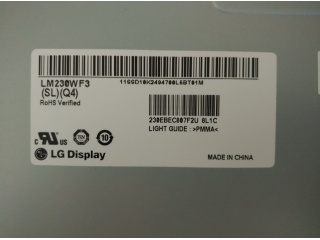

| PartNumber | LM230WF3-SLQ4 |
| Brand | LG Display |
| Size | 23.0 |
| Application | Desktop Monitor |
| Resolution | 1920×1080 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 18S2P WLED , 30K hours |
| Interface | LVDS |
| Manufacturer | LG Display |
| Model Name | LM230WF3-SLQ4 |
| Screen Size | 23.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 95PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 509.184 × 286.416 (H×V) |
| Outline(mm) | 533.2 × 312 × 11 (H×V×D) |
| Bezel Area(mm) | 513.8 × 291.0 (H×V) |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 14 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Mass | 1.93/2.03Kgs (Typ./Max.) |
| Used for | Desktop Monitor |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (2 ch, 8-bit) , Connector 30 pins |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
