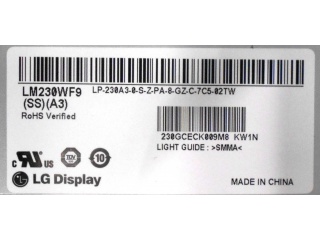

| PartNumber | LM230WF9-SSA3 |
| Brand | LG Display |
| Size | 23.0 |
| Application | Desktop Monitor |
| Resolution | 1920(RGB)×1080, FHD, 95PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 14S4P |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Size | 23.0" |
| Display Area | 509.184(W)×286.416(H) mm |
| Outline Size | 517.2(W)×302.8(H) ×12.7(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72% NTSC |
| Frequency | 60Hz |
| Panel Weight | 1.79/1.88Kgs (Typ./Max.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | LM230WF9-SSA3 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 14 (Typ.)(G to G) |
| Lamp Type | 14S4P WLED , 30K hours , Without Driver |
| Touch Screen | Without |
