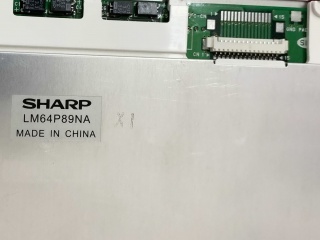

| PartNumber | LM64P89NA |
| Brand | Sharp |
| Size | 10.4 |
| Application | Industrial |
| Resolution | 640×480, VGA, 76PPI |
| Composition | FSTN-LCD, LCM |
| Brightness | 75 cd/m² (Typ.) |
| CR | 18:1 |
| Colors | Monochrome |
| Backlight | 1 |
| Interface | Parallel |
| Panel Brand | Sharp |
| Panel Model | LM64P89NA |
| Panel Size | 10.4" |
| Panel Type | FSTN-LCD, LCM |
| Pixel Format | Rectangle |
| Display Area | 211.17(W)×158.37(H) mm |
| Bezel Opening | 223.0(W)×169.0(H) mm |
| Outline Size | 268(W)×190(H) ×7(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 18:1 (Typ.) (TM) |
| Viewing Angle | 20/25/20/10 (Typ.)(CR>4) |
| Display Mode | STN, Black/White (Positive), Transmissive |
| Best View on | - |
| Response Time | 200/150 (Typ.)(Tr/Td) |
| Display Colors | Monochrome |
| Lamp Type | 1 pcs CCFL , 25K hours , Without Driver |
| Frequency | 85Hz |
| Touch Screen | Without |
| Panel Weight | - |
| Signal Interface | Parallel Data (1ch, 4-bit) , 15 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
