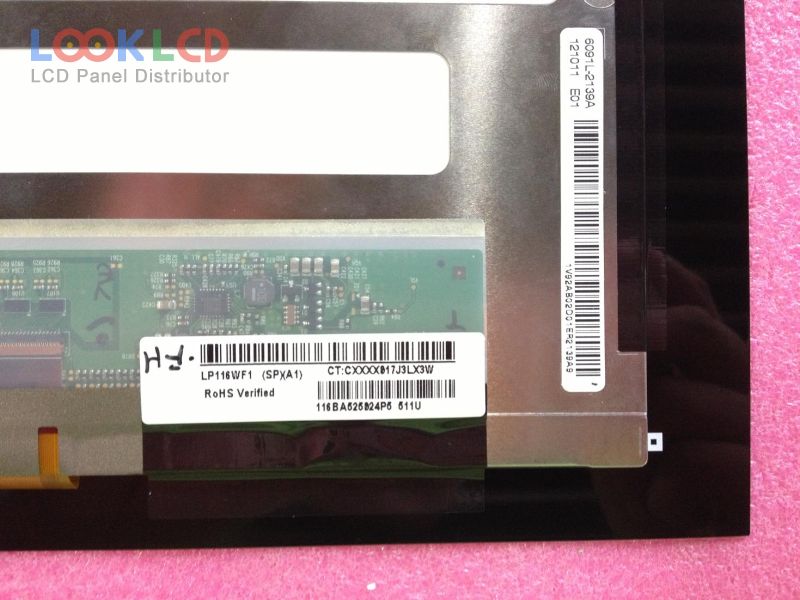

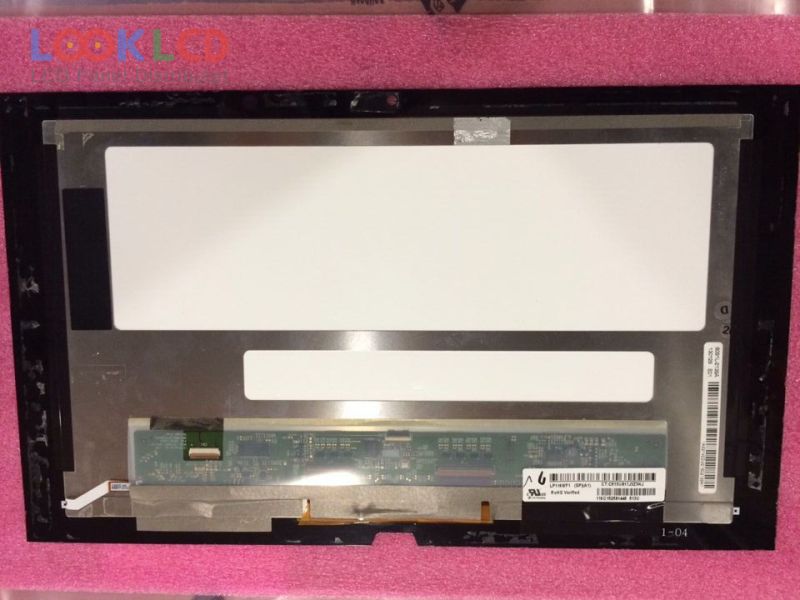

| PartNumber | LP116WF1-SPA1 |
| Brand | LG Display |
| Size | 11.6 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | Assembly |
| Brightness | 360 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | LG Display |
| Panel Model | LP116WF1-SPA1 |
| Panel Type | a-Si TFT-LCD , Assembly |
| Panel Size | 11.6 inch |
| Active Area | 256.32×144.18 mm |
| Outline | 267×157.8×4.03 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Anti Fingerprint, Hard coating (8H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Signal Interface | eDP (2 Lanes), 35 pins |
| Input Voltage | 3.3V (Typ.) |
