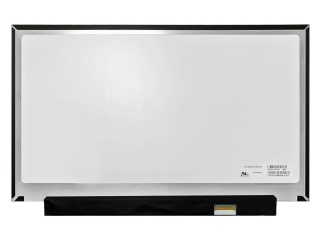

| PartNumber | LP133WF6-SPH1 |
| Brand | LG Display |
| Size | 13.3 |
| Application | Laptop Industrial |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 13.3 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 166PPI |
| Active Area | 293.472(H)×165.078(V) mm |
| Bezel Area | - |
| Luminance | 300 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M sRGB |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 60Hz |
| Interface Type | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | LP133WF6-SPH1 (LGD0600) |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 299.46(H)×191.75(V) ×2.35(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Laptop Industrial |
| Touch Panel | In-Cell Touch |
