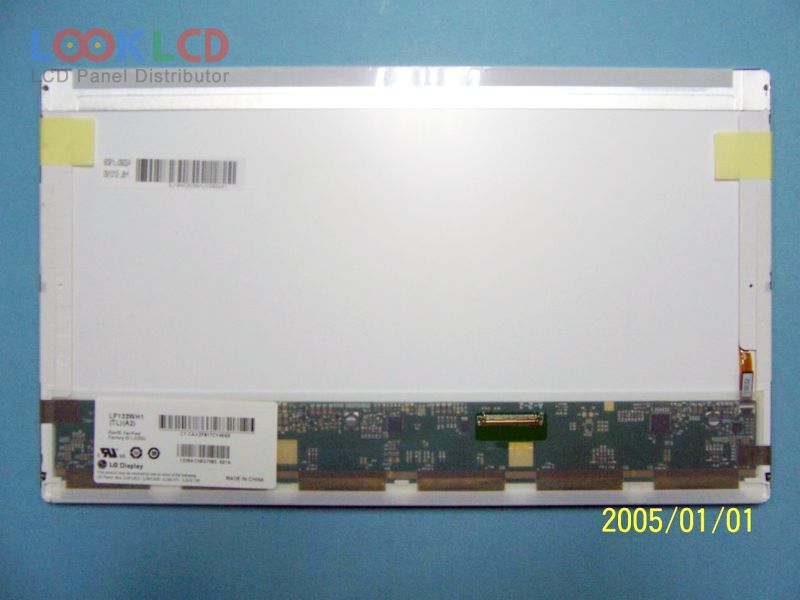

| PartNumber | LP133WH1-TLA2 |
| Brand | LG Display |
| Size | 13.3 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 300:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP133WH1-TLA2 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 13.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 293.42×164.97 mm |
| Outline | 307.6×183.1×5.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 300:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |

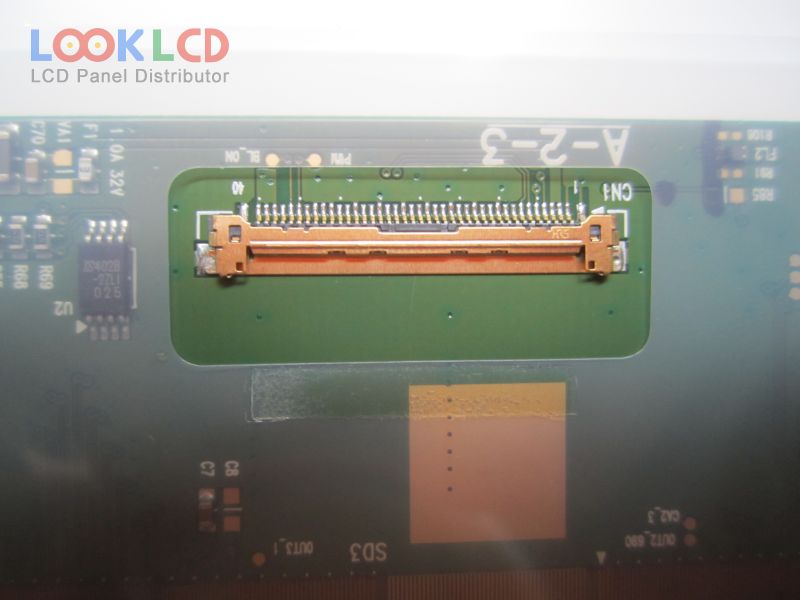

| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LP133WD2-SPB1 | LG Display | 13.3 | 1600×900 |
| LP133WH1-TLA3 | LG Display | 13.3 | 1366×768 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP133WH2-SPA2 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LP133WX1-TLN3 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLC1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLD1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP133WX3-TLA6 | LG Display | 13.3 | 1280×800 |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B156HW01 V7 | AUO | 15.6 | 1920×1080 |
| CLAA133WA01A | CPT | 13.3 | 1366×768 |
| CLAA156WA01A | CPT | 15.6 | 1366×768 |
| LP150E07-A2 | LG Display | 15.0 | 1400×1050 |
| LTN140KT06-T01 | Samsung | 14.0 | 1600×900 |
| LTN154XB-L01 | Samsung | 15.4 | 1280×800 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
