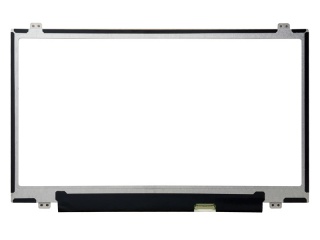

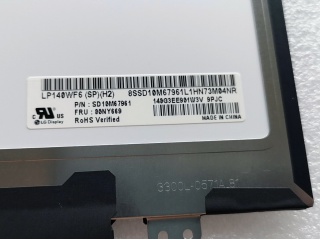

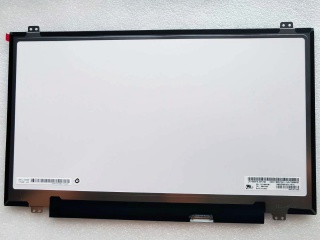

LP140WF6-SPH2


Brand
LG Display
Size
14.0
Application
Laptop
Resolution
1920×1080
Composition
LCM ,   a-Si TFT-LCD
Brightness
CR
Colors
262K
Backlight
WLED
Interface
eDP
In Stock
4623
Specifications
PartNumber LP140WF6-SPH2
BrandLG Display
Size14.0
ApplicationLaptop
Resolution1920×1080
CompositionLCM ,   a-Si TFT-LCD
Brightness
CR
Colors262K
BacklightWLED , With LED Driver
InterfaceeDP
ManufacturerLG Display
Model NameLP140WF6-SPH2
Screen Size14.0 inch
Screen TypeLCM ,   a-Si TFT-LCD
Pixel Number1920(RGB)×1080   (FHD)  157PPI
ArrangementRGB Vertical Stripe
Active Area(mm)309.31 × 173.99 (H×V)
Outline(mm)-
Viewing Angle-
Response-
Good View atSymmetry
Work ModeIPS, Normally Black, Transmissive
Color Depth262K
Outline Shape-
Used forLaptop
Refresh Rate60Hz
Touchscreen-
Signal TypeeDP
Max. RatingsStorage Temp.: -20 ~ 60 °C    Operating Temp.: 0 ~ 50 °C
Family Model
LP140WD1-TLD2 LG Display 14.0 1600×900
LP140WD2-TPB1 LG Display 14.0 1600×900
LP140WF6-SPB3 LG Display 14.0 1920×1080
LP140WH2-TLA1 LG Display 14.0 1366×768
LP140WH2-TLF3 LG Display 14.0 1366×768
LP140WH2-TLL2 LG Display 14.0 1366×768
LP140WH2-TLQ1 LG Display 14.0 1366×768
LP140WH4-TLN1 LG Display 14.0 1366×768
LP140WH4-TLP1 LG Display 14.0 1366×768
LP140WX1-TL02 LG Display 14.0 1280×768
