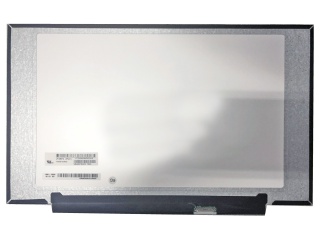

| PartNumber | LP140WFA-SPC1 |
| Brand | LG Display |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 157PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | LG Display |
| Panel Model | LP140WFA-SPC1 (LGD0613) |
| Panel Size | 14.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 309.31(W)×173.99(H) mm |
| Bezel Opening | - |
| Outline Size | 315.81(W)×197.57(H) ×3(D) mm |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Display Colors | 262K 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
