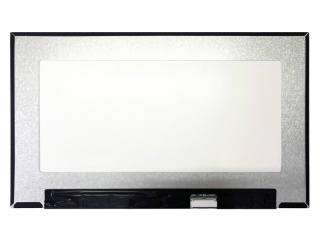

| PartNumber | LP140WFB-SPF1 |
| Brand | LG Display |
| Size | 14.0 |
| Application | Laptop Industrial |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 700:1 |
| Colors | 262K |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | LG Display |
| Model Name | LP140WFB-SPF1 (LGD05F9) |
| Screen Size | 14.0 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.31 × 173.99 (H×V) |
| Outline(mm) | 315.81 × 186.07 × 5.25 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 25 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 262K 72% NTSC |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | In-Cell Touch |
| Signal Type | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
