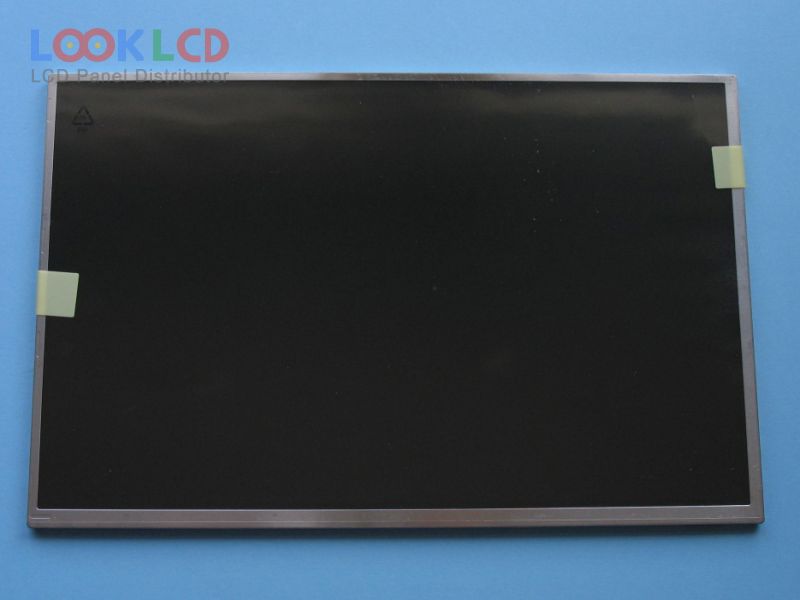

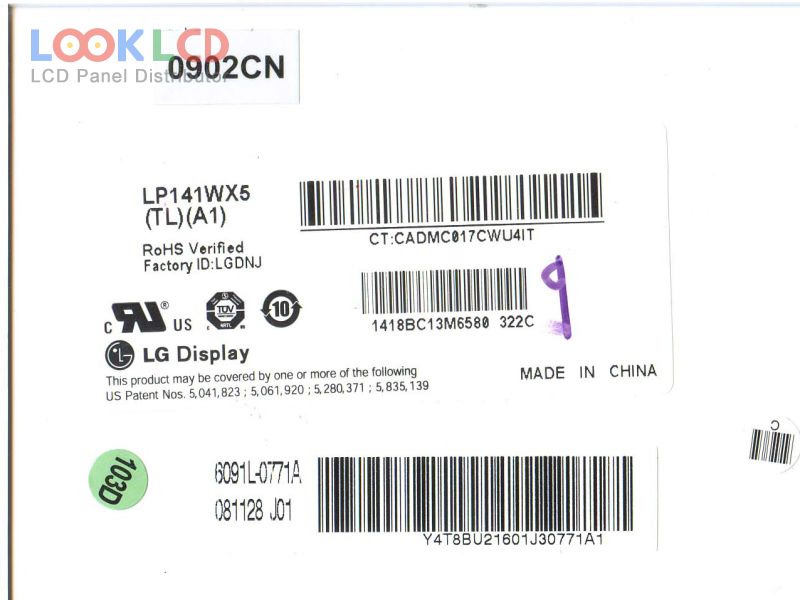

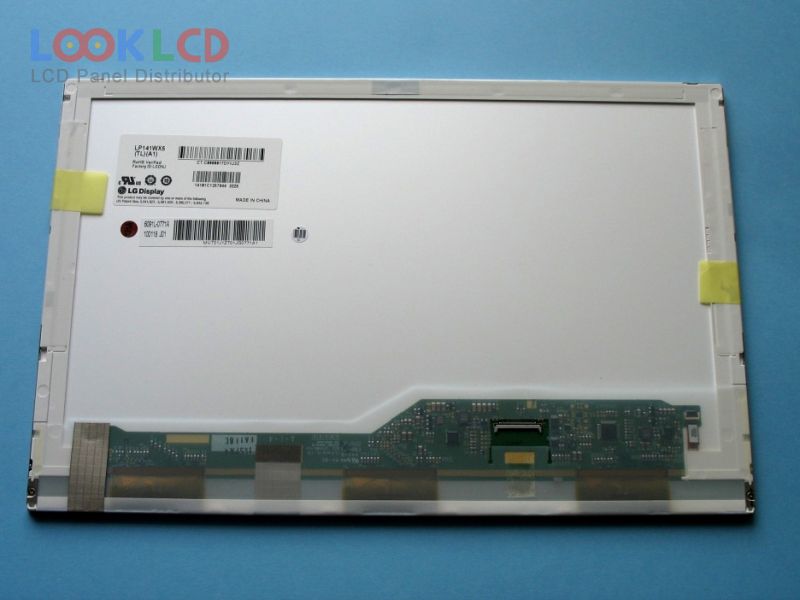

| PartNumber | LP141WX5-TLA1 |
| Brand | LG Display |
| Size | 14.1 |
| Application | NBPC |
| Resolution | 1280(RGB)×800 , WXGA |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP141WX5-TLA1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 14.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 303.74×189.84 mm |
| Outline | 319.5×206.5×5.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Antiglare |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 8S6PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LP141WP2-TLA2 | LG Display | 14.1 | 1440×900 |
| LP141WP2-TPA1 | LG Display | 14.1 | 1440×900 |
| LP141WX1-TL01 | LG Display | 14.1 | 1280×800 |
| LP141WX1-TL02 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLA4 | LG Display | 14.1 | 1280×800 |
| LP141WX3-TLB1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLD1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP1 | LG Display | 14.1 | 1280×800 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| B141EW05 V4 | AUO | 14.1 | 1280×800 |
| B156XW03 V0 | AUO | 15.6 | 1366×768 |
| B173RW01 V5 | AUO | 17.3 | 1600×900 |
| HN133WU1-100 | BOE | 13.3 | 1920×1080 |
| LP133WH2-SPA1 | LG Display | 13.3 | 1366×768 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LP156WH1-TLA3 | LG Display | 15.6 | 1366×768 |
| LTN156AT05-W01 | Samsung | 15.6 | 1366×768 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| N121I2-L01 | Innolux | 12.1 | 1280×800 |
