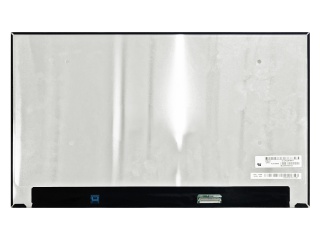

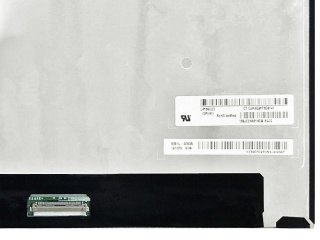

| PartNumber | LP156UD3-SPH1 |
| Brand | LG Display |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3840(RGB)×2160, UHD, 283PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1600:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | LG Display |
| Panel Size | 15.6" |
| Display Area | 344.218(W)×193.622(H) mm |
| Outline Size | 349.22(W)×205.22(H) ×4.6(D) mm |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.7M 72% NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Panel Model | LP156UD3-SPH1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1600:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 30 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 12K hours , With LED Driver |
| Touch Screen | Without |
