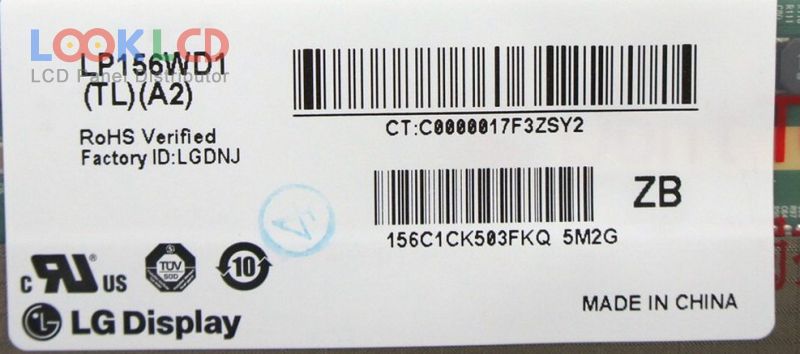

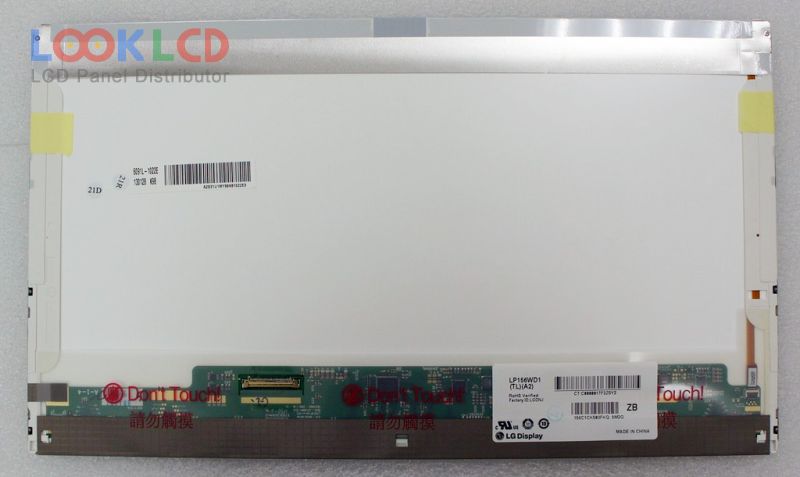

| PartNumber | LP156WD1-TLA2 |
| Brand | LG Display |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP156WD1-TLA2 10 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.16×193.59 mm |
| Outline | 359.3×209.5×5.7 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193160% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
