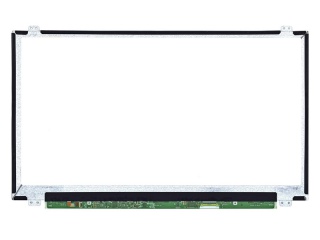

| PartNumber | LP156WF6-SPK4 |
| Brand | LG Display |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 700:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Model | LP156WF6-SPK4 |
| Diagonal Size | 15.6 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.16(H)×193.59(V) mm |
| Outline Dim. | 359.5(H)×223.8(V) ×3.2(D) mm |
| Bezel Area | 347.45(H)×196.8(V) mm |
| Treatment | - |
| Luminance | - |
| Contrast Ratio | 700:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Operating Mode | AH-IPS, Normally Black, Transmissive |
| Support Color | 262K |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | - |
| Interface Type | eDP (2 Lanes) Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
