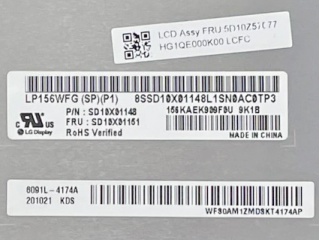

| PartNumber | LP156WFG-SPP1 |
| Brand | LG Display |
| Size | 15.6 |
| Application | Laptop Gaming |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED , 12K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | LG Display |
| Model Name | LP156WFG-SPP1 (LGD0657) |
| Screen Size | 15.6 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 214.75 × 2.6 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) |
| Response | 9 (Typ.)(Tr+Tf); 4 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 100% sRGB |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop Gaming |
| Refresh Rate | 144Hz |
| Touchscreen | Without |
| Signal Type | eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
