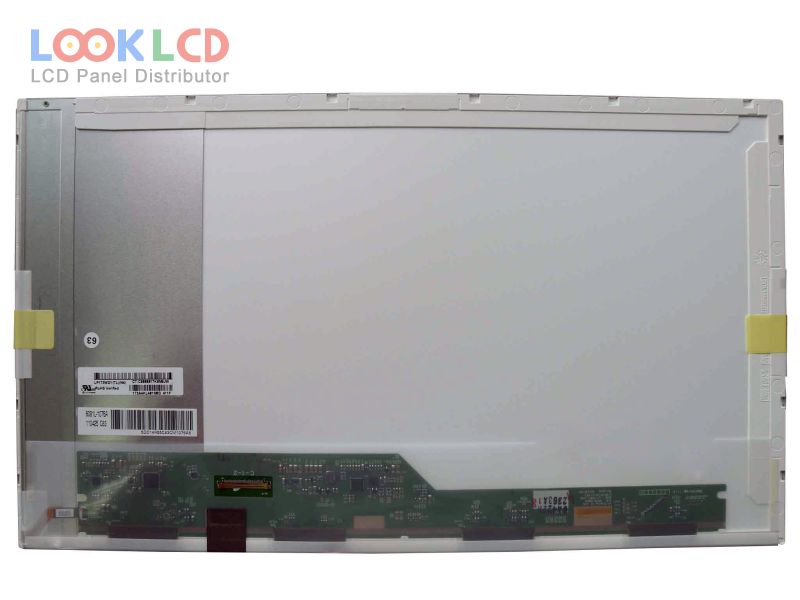

| PartNumber | LP173WD1-TLN4 |
| Brand | LG Display |
| Size | 17.3 |
| Application | NBPC |
| Resolution | 1600(RGB)×900 , HD+ |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP173WD1-TLN4 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 381.89×214.81 mm |
| Outline | 398.1×232.8×6 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193157% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
