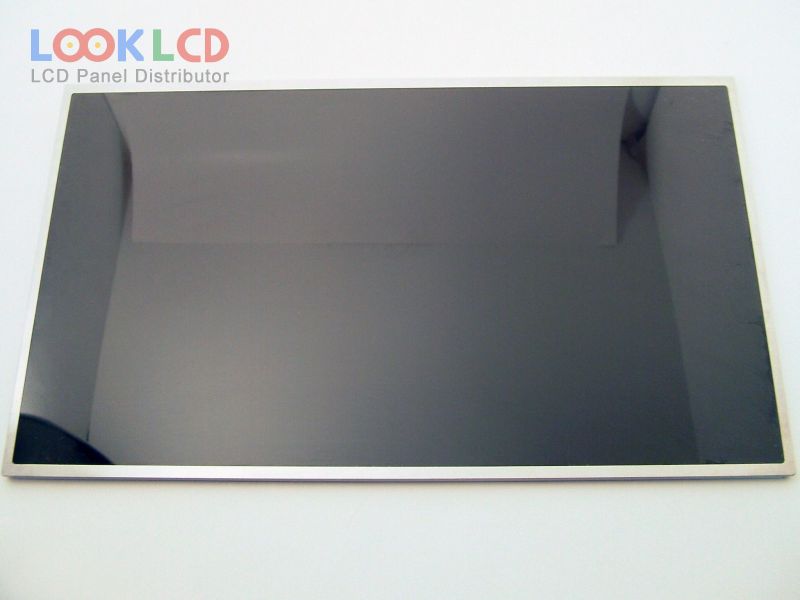

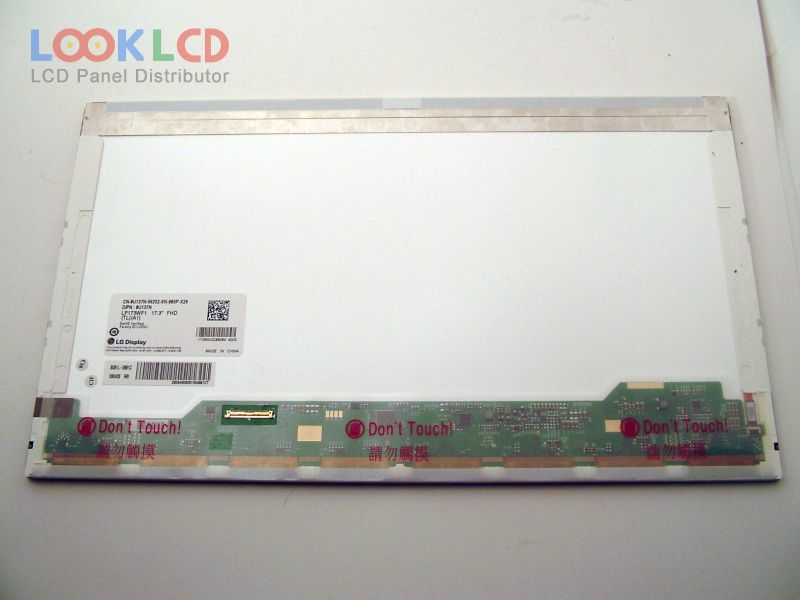

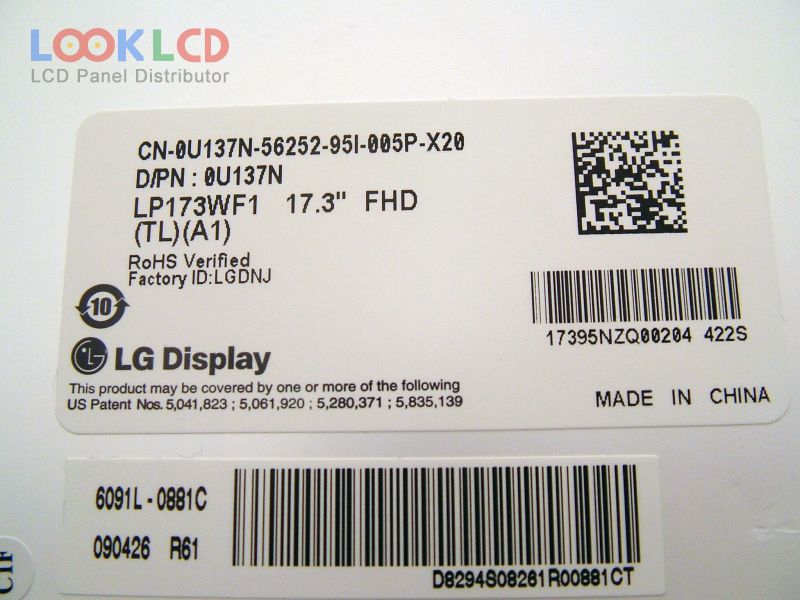

| PartNumber | LP173WF1-TLA1 |
| Brand | LG Display |
| Size | 17.3 |
| Application | NBPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP173WF1-TLA1 5 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.3 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 381.888×214.812 mm |
| Outline | 398.1×232.8×6 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (4H) |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193172% |
| Response Time | 8 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
| LP173WD1-TLA1 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLA2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WF1-TLA1 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLA2 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLB3 | LG Display | 17.3 | 1920×1080 |
| LP173WF1-TLC1 | LG Display | 17.3 | 1920×1080 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LP173WF3-SLB2 | LG Display | 17.3 | 1920×1080 |
| LP173WF4-SPD1 | LG Display | 17.3 | 1920×1080 |
| B121EW03 V3 | AUO | 12.1 | 1280×800 |
| B173ZAN01.0 | AUO | 17.3 | 3840×2160 |
| LP133WX3-TLA2 | LG Display | 13.3 | 1280×800 |
| LP140WX1-TL01 | LG Display | 14.0 | 1280×768 |
| LP140WX1-TL02 | LG Display | 14.0 | 1280×768 |
| LP141WP1-TLA2 | LG Display | 14.1 | 1440×900 |
| LTM12C318S | TOSHIBA | 12.1 | 1024×768 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
