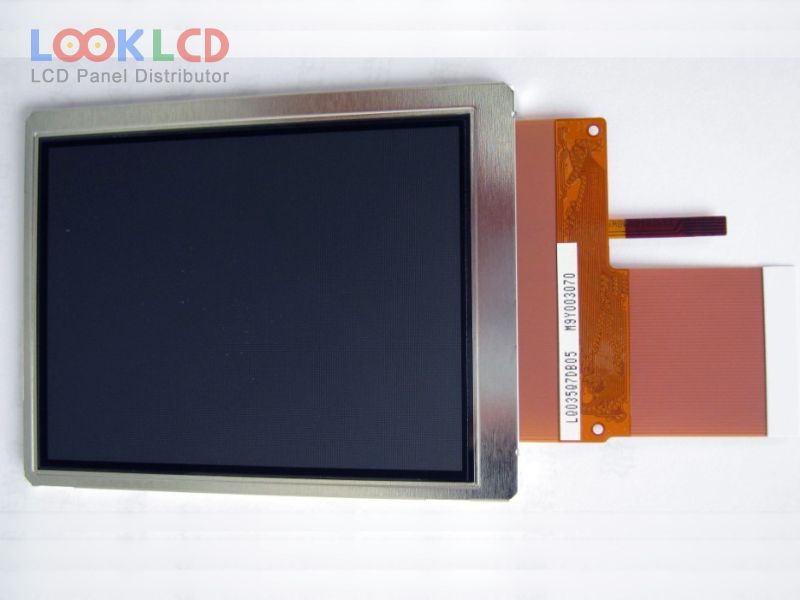

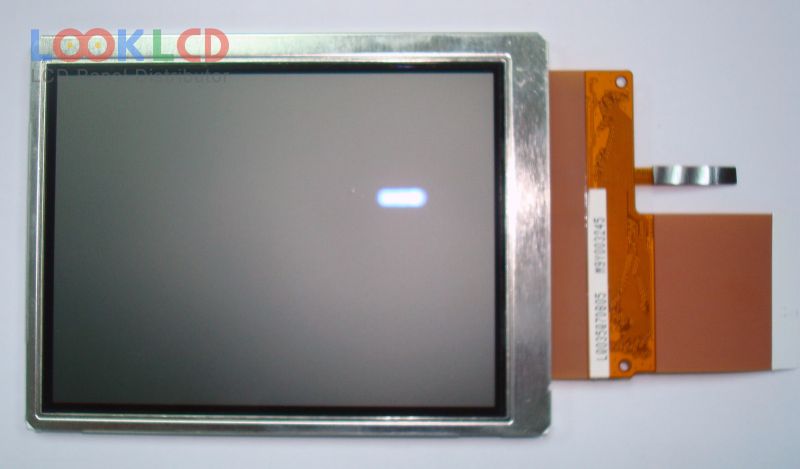

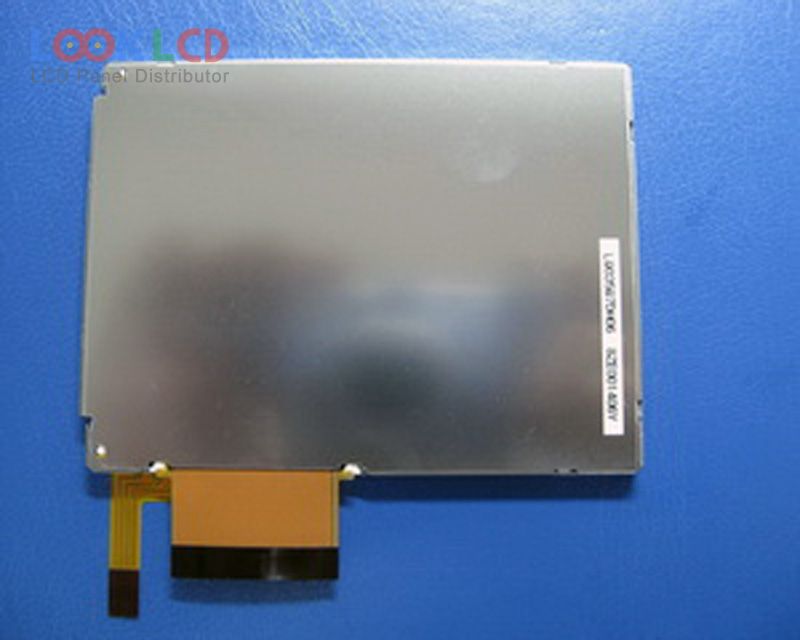

| PartNumber | LQ035Q7DB05 |
| Brand | SHARP |
| Size | 3.5 |
| Application | HHP |
| Resolution | 240(RGB)×320 , QVGA |
| Composition | LCM |
| Brightness | 160 cd/m² (Typ.) |
| CR | 85:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ035Q7DB05 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 3.5 inch |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 53.64×71.52 mm |
| Outline | 65×85×3.7 mm |
| Surface | Hard coating (3H) |
| Contrast Ratio | 85:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| Display Colors | 262K (6-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/50 (Typ.)(CR≥2)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 50 pins |
| Input Voltage | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
