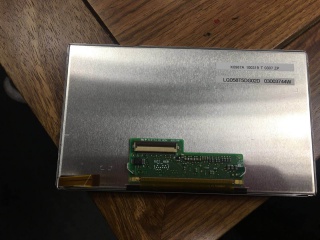

| PartNumber | LQ058T5DG02D |
| Brand | Sharp |
| Size | 5.8 |
| Application | Automotive Display |
| Resolution | 480×240 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | |
| Colors | 262K |
| Backlight | WLED |
| Interface | Parallel |
| Manufacturer | Sharp |
| Model Name | LQ058T5DG02D |
| Screen Size | 5.8 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 480(RGB)×240 (WQVGA) 92PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 128.4 × 70.92 (H×V) |
| Outline(mm) | - |
| Viewing Angle | - |
| Response | - |
| Good View at | - |
| Work Mode | Transmissive |
| Color Depth | 262K |
| Mass | - |
| Used for | Automotive Display |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Parallel RGB (1 ch, 6-bit) |
| Max. Ratings | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C |
