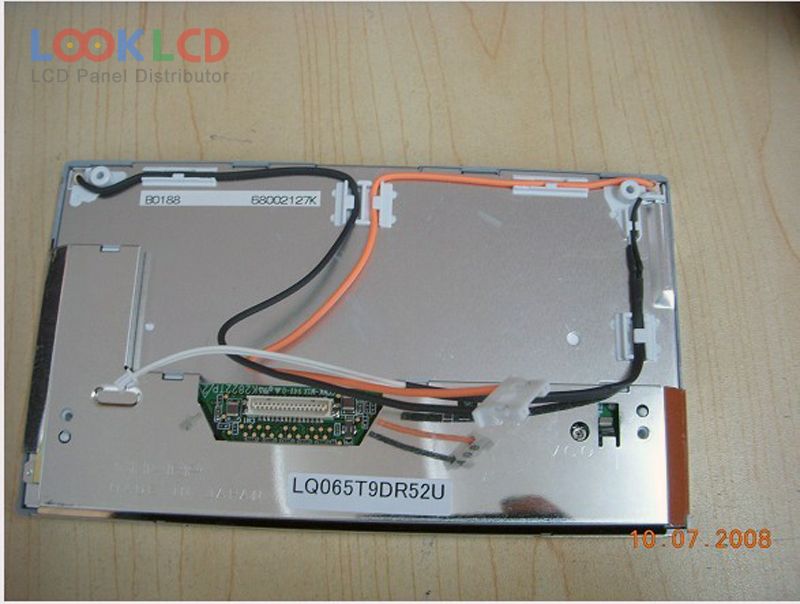

| PartNumber | LQ065T9DR52U |
| Brand | SHARP |
| Size | 6.5 |
| Application | CNS |
| Resolution | 400(RGB)×240 , WQVGA |
| Composition | LCM |
| Brightness | 220 cd/m² (Typ.) |
| CR | 60:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ065T9DR52U |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 6.5 inch |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 143.4×79.326 mm |
| Outline | 155×89.2 mm |
| Surface | Antiglare, Antireflection |
| Contrast Ratio | 60:1 (Min.)(Transmissive)5:1 (Typ.)(Reflective) |
| Display Colors | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/40/45 (Typ.)(CR≥5)(L/R/U/D) |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 31 pins |
| Input Voltage | 5/10/-10V (Typ.)(VSH/VGH/VGL) |
| LQ065T5BR08 | SHARP | 6.5 | 400×240 |
| LQ065T5DG05 | SHARP | 6.5 | 480×234 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ065T5GA01 | SHARP | 6.5 | 400×234 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ065T9BR51U | SHARP | 6.5 | 400×240 |
| LQ065T9BR54U | SHARP | 6.5 | 400×240 |
| LQ065T9DR51U | SHARP | 6.5 | 400×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| LQ065T9DZ03 | SHARP | 6.5 | 400×240 |
| C070FW03 V0 | AUO | 7.0 | 480×234 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| HSD062IDW1-A00 | HannStar | 6.2 | 800×480 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ065T5DG30 | SHARP | 6.5 | 400×240 |
| LQ065T9DR52U | SHARP | 6.5 | 400×240 |
| PA050DS7 | E Ink | 5.0 | 320×234 |
| PM061WX1 | E Ink | 6.1 | 800×480 |
| ZJ070NA-01P | Innolux | 7.0 | 1024×600 |
