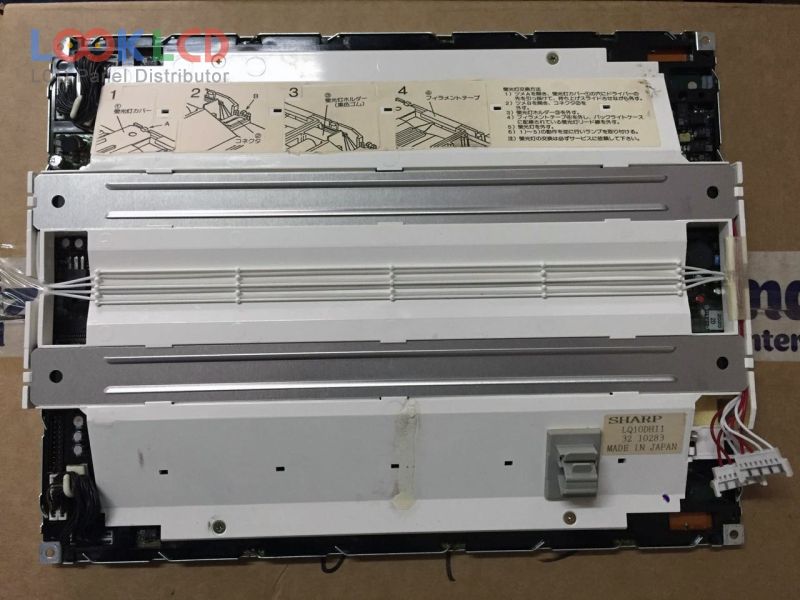

| PartNumber | LQ10DH11 |
| Brand | SHARP |
| Size | 10.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 80 cd/m² (Typ.) |
| CR | 60:1 |
| Colors | 512 |
| Backlight | HCFL |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ10DH11 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 283×217 mm |
| Surface | Antiglare, Hard coating (2H) |
| Contrast Ratio | 60:1 (Min.) |
| Display Colors | 512 (3-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 2 pcsHCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 3-bit), 22 pins |
| Input Voltage | 5.0/12.0V (Typ.)(VCC/VDD) |
