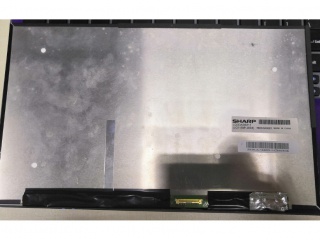

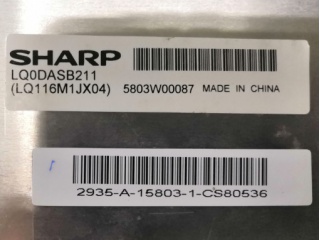

| PartNumber | LQ116M1JX04 |
| Brand | Sharp |
| Size | 11.6 |
| Application | Pad & Tablet |
| Resolution | 1920×1080 |
| Composition | Oxide TFT-LCD, Assem |
| Brightness | |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Model | LQ116M1JX04 |
| Diagonal Size | 11.6 inch |
| Type | Oxide TFT-LCD, Assembly |
| Pixel Format | 1920(RGB)×1080 [FHD] 190PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 256.32(H)×144.18(V) mm |
| Outline Dim. | 293.68(H)×186.54(V) ×6(D) mm |
| Bezel Area | - |
| Treatment | Glare (Haze 0%), Hard coating (7H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 22 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED , 10K hours , With LED Driver |
| Weight | 252.3g (Typ.) |
| Designed For | Pad & Tablet |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| B116HAN03.1 | AUO | 11.6 | 1920×1080 |
| B116XAN01.0 | AUO | 11.6 | 1366×768 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| LP116WH1-TLN1 | LG Display | 11.6 | 1366×768 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| LTN116AT02-D01 | Samsung | 11.6 | 1366×768 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| N116BGE-EA2 | Innolux | 11.6 | 1366×768 |
| N116BGE-L42 | Innolux | 11.6 | 1366×768 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
