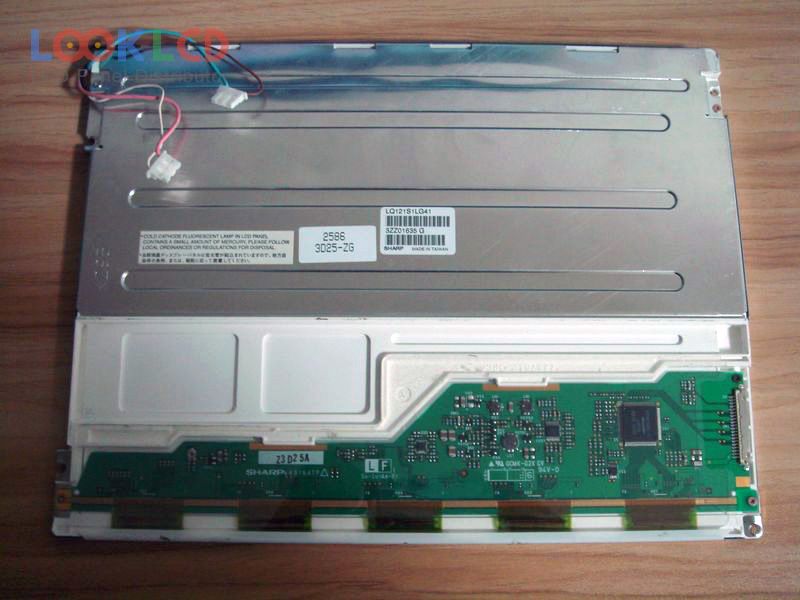

| PartNumber | LQ121S1LG41 |
| Brand | SHARP |
| Size | 12.1 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 370 cd/m² (Typ.) |
| CR | 450:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ121S1LG41 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 246×184.5 mm |
| Outline | 276×209×11 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 450:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3/5.0V (Typ.) |
