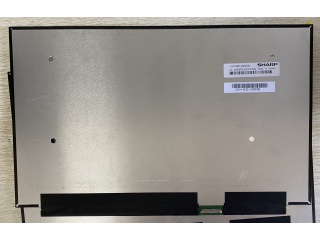

| PartNumber | LQ133M1JX36 |
| Brand | Sharp |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | 470 cd/m² (Typ.) |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Sharp |
| Panel Model | LQ133M1JX36 (SHP14A9) |
| Panel Size | 13.3" |
| Panel Type | Oxide TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 293.76(W)×165.24(H) mm |
| Bezel Opening | - |
| Outline Size | 298.76(W)×186.04(H) ×2.1(D) mm |
| Surface | Glare (Haze 0%), Hard coating |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | IPS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 30 (Typ.)(Tr+Td) |
| Display Colors | 16.7M 100% sRGB |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.4 , 2.16G/lane , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
| CLAA133UA01 | CPT | 13.3 | 1600×900 |
| LP133WD2-SLB1 | LG Display | 13.3 | 1600×900 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
