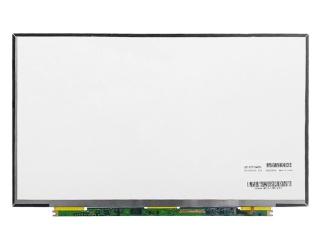

| PartNumber | LQ133T1JW23 |
| Brand | Sharp |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 2560×1440 |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Model | LQ133T1JW23 (SHP1412) |
| Diagonal Size | 13.3 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 2560(RGB)×1440 [Quad-HD] 221PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 293.76(H)×165.24(V) mm |
| Outline Dim. | 304.98(H)×187.9(V) ×2.6(D) mm |
| Bezel Area | - |
| Treatment | Antiglare (Haze 42%) |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Operating Mode | VA, Normally Black, Transmissive |
| Support Color | 16.7M 100% sRGB |
| Light Source | WLED , 10K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
