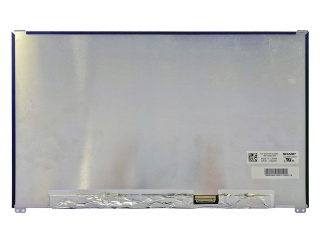

| PartNumber | LQ140M1JW32 |
| Brand | Sharp |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM , Oxide TFT-LC |
| Brightness | |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | Sharp |
| Screen Size | 14.0 inch |
| Pixel Number | 1920(RGB)×1080 (FHD) 157PPI |
| Active Area(mm) | 309.312 × 173.988 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 300 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 16.7M 100% sRGB |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Refresh Rate | 60Hz |
| Signal Type | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |

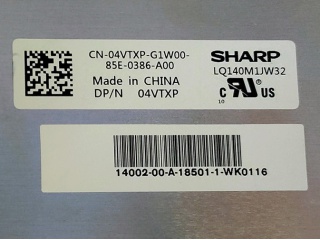

| Model Name | LQ140M1JW32 (SHP1497) |
| Screen Type | LCM , Oxide TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 314.4 × 193.51 × 5.15 (H×V×D) |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Work Mode | New Mode2, Normally Black, Transmissive |
| Used for | Laptop |
| Touchscreen | Without |
