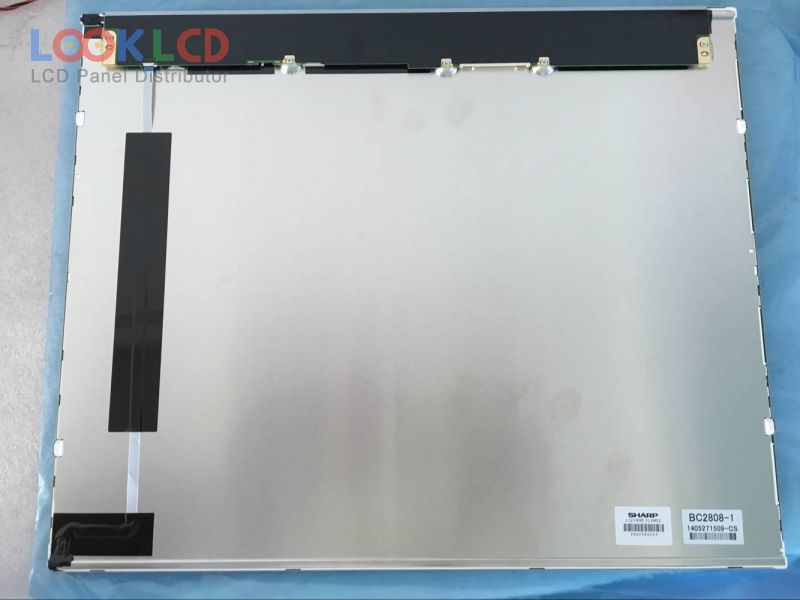

| PartNumber | LQ190E1LW62 |
| Brand | SHARP |
| Size | 19.0 |
| Application | GM |
| Resolution | 1280(RGB)×1024 , SXGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ190E1LW62 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 19.0 inch |
| Display Mode | ASV, Normally Black, Transmissive |
| Active Area | 376.32×301.056 mm |
| Outline | 396×323.5×12 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193192% |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
