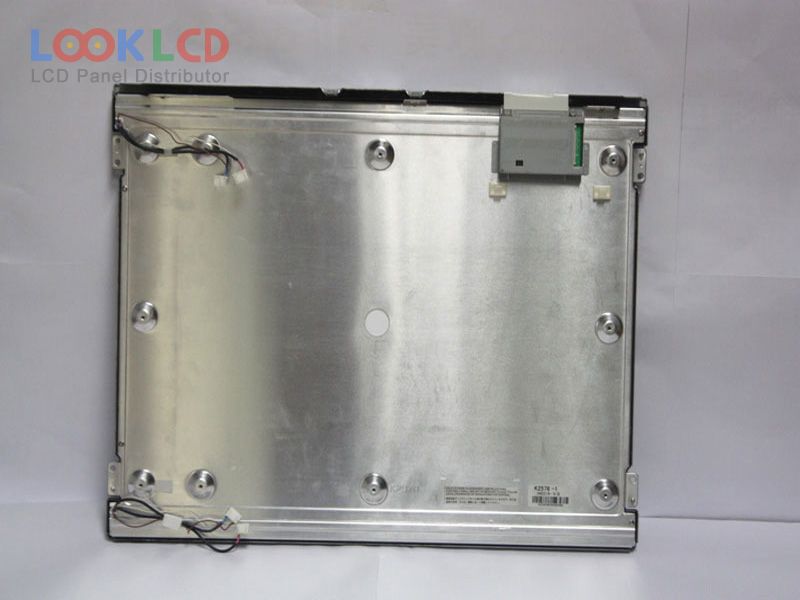

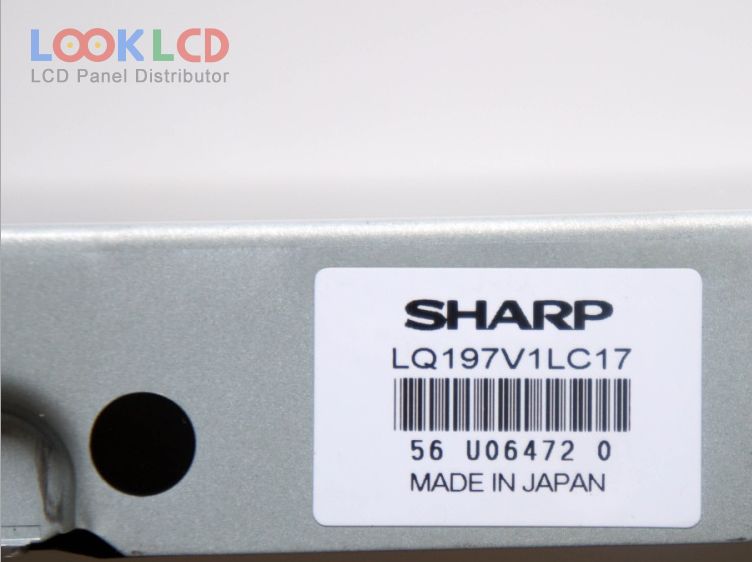

| PartNumber | LQ197V1LC17 |
| Brand | SHARP |
| Size | 19.7 |
| Application | LCTV |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 260 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SHARP |
| Panel Model | LQ197V1LC17 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 19.7 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 401.28×298.8 mm |
| Outline | 448.1×340.1 mm |
| Surface | Hard coating (2H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
