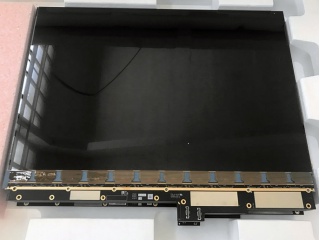

| PartNumber | LQ282D1JC01 |
| Brand | Sharp |
| Size | 28.2 |
| Application | Desktop Monitor |
| Resolution | 4500×3000 |
| Composition | CELL , a-Si TFT-LC |
| Brightness | |
| CR | 1300:1 |
| Colors | 1.07B |
| Backlight | No B/L |
| Interface | eDP |
| Manufacturer | Sharp |
| Screen Size | 28.2 inch |
| Pixel Number | 4500(RGB)×3000 191PPI |
| Active Area(mm) | 595.35 × 396.9 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 0 cd/m² |
| Viewing Angle | - |
| Good View at | Symmetry |
| Glass Thickness | - |
| Color Depth | 1.07B 99% DCI-P3 |
| Mass | 840±20g |
| Refresh Rate | 60Hz |
| Driver IC list | Built-in COF 12 source chips |
| Signal Type | eDP (8 Lanes) , eDP1.3 , 60 pins Connector |
| Voltage Supply | 5.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 55 °C |
| Model Name | LQ282D1JC01 (SHP1498) |
| Screen Type | CELL , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 609.11 × 406.1 (H×V×D) |
| Treatment | Hard coating |
| Contrast Ratio | 1300 : 1 (Typ.) (TM) |
| Response | 27 (Typ.)(Tr/TF); 50 (Typ.)(G to G) ms |
| Work Mode | New Mode2, Normally Black, Transmissive |
| Transmissivity | 4.9% (Typ.)(with Polarizer) |
| Used for | Desktop Monitor |
| Touchscreen | Without |
