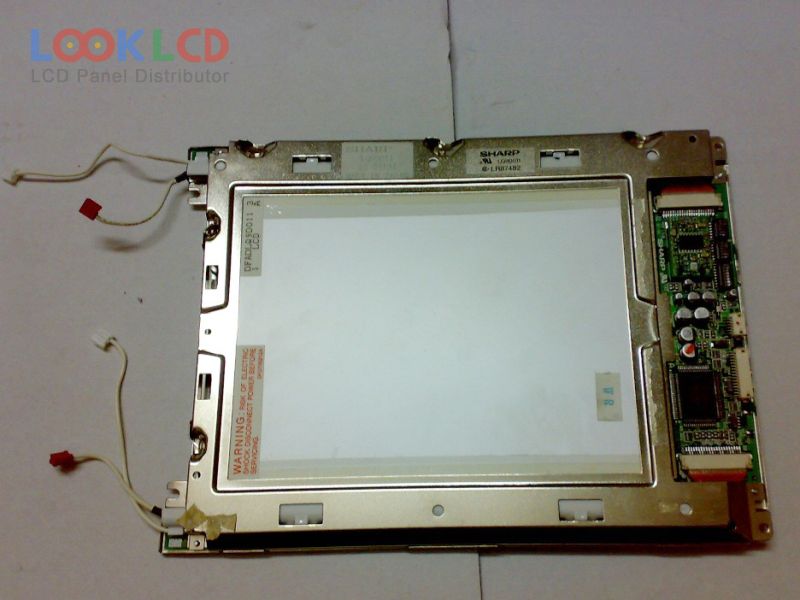

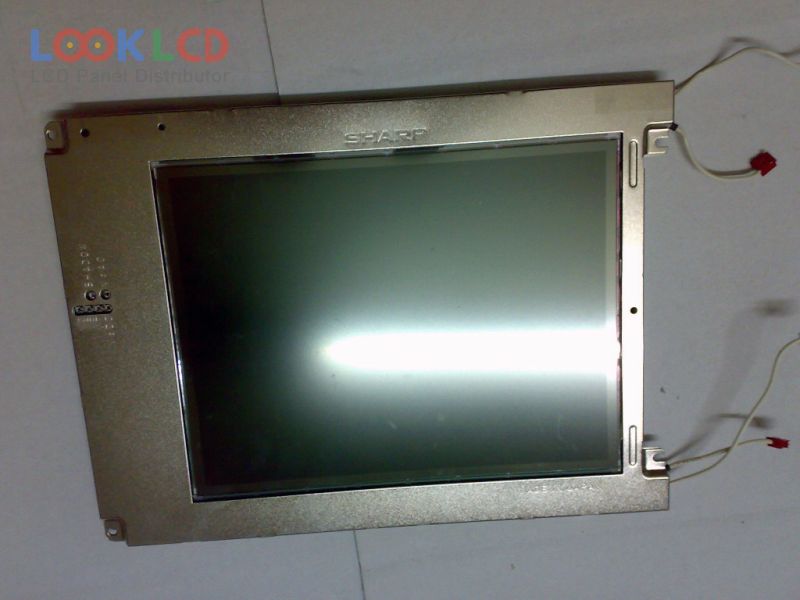

| PartNumber | LQ9D011 |
| Brand | SHARP |
| Size | 8.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 70 cd/m² (Typ.) |
| CR | 60:1 |
| Colors | 512 |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LQ9D011 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 8.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 170.88×129.6 mm |
| Outline | 243.5×180 mm |
| Surface | Antiglare, Hard coating (2H) |
| Contrast Ratio | 60:1 (Typ.) |
| Display Colors | 512 (3-bit) |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 3-bit), 21 pins |
| Input Voltage | 5.0V (Typ.)(VCC) |
