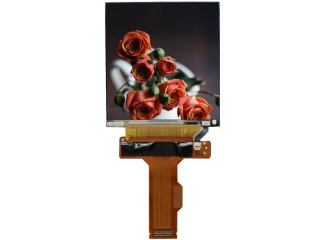

| PartNumber | LS029B3SX04 |
| Brand | Sharp |
| Size | 2.9 |
| Application | HMD VR AR |
| Resolution | 1440×1440 |
| Composition | LCM , CG-Silicon |
| Brightness | |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | 2 strings WLED , No Driver |
| Interface | MIPI |
| Manufacturer | Sharp |
| Model Name | LS029B3SX04 |
| Screen Size | 2.9 inch |
| Screen Type | LCM , CG-Silicon |
| Pixel Number | 1440(RGB)×1440 705PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 51.84 × 51.84 (H×V) |
| Outline(mm) | 54.24 × 59.02 × 1.51 (H×V×D) |
| Luminance | 150 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | 4.6/3.5 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | SFR, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Mass | 7.20g (Typ.) |
| Used for | HMD VR AR |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Signal Type | MIPI (2 ch, 4 data lanes) , 40 pins Connector |
| Voltage Supply | 1.8/5.5/-5.5V (Typ.)(VDDI/AVDD/AVEE) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
