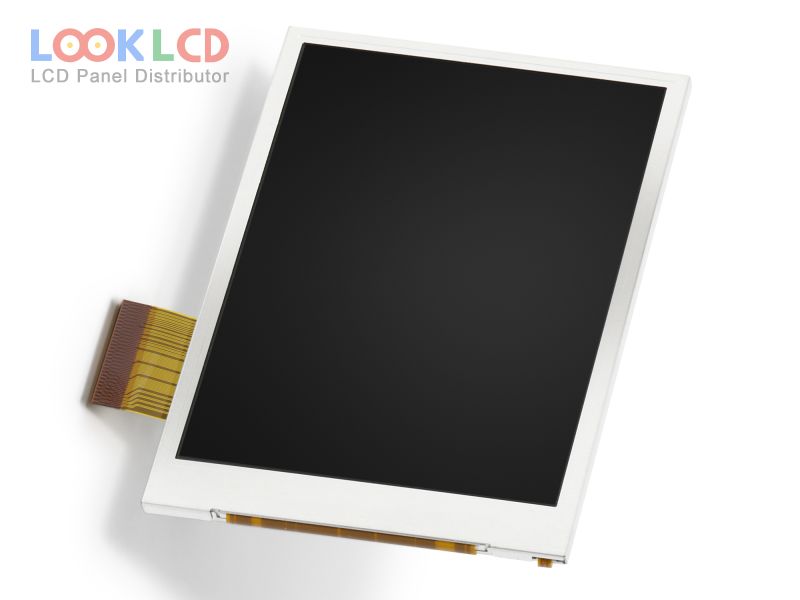

| PartNumber | LS037V7DW06 |
| Brand | SHARP |
| Size | 3.7 |
| Application | HHP |
| Resolution | 480(RGB)×640 , VGA |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 900:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | SHARP |
| Panel Model | LS037V7DW06 |
| Panel Type | CG-Silicon , LCM |
| Panel Size | 3.7 inch |
| Display Mode | ASV, Normally Black, Transflective |
| Active Area | 56.16×74.88 mm |
| Outline | 65×89.2×3.6 mm |
| Surface | Antiglare |
| Contrast Ratio | 900:1 (Typ.)(Transmissive) |
| Display Colors | 262K/16.7M (6-bit / 8-bit), CIE193150% |
| Response Time | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 6S1PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 61 pins |
| Input Voltage | 5.5/1.8V (Typ.)(VDD5/VCI) |
