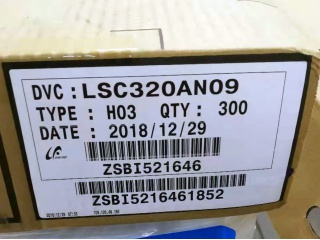

| PartNumber | LSC320AN09-H |
| Brand | SAMSUNG |
| Size | 32.0 |
| Application | TV Sets |
| Resolution | 1366×768(RGB), WXGA, 49PPI |
| Composition | a-Si TFT-LCD , CELL |
| Brightness | 0 cd/m² |
| CR | 4000:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Size | 32.0" |
| Display Area | 697.685(W)×392.256(H) mm |
| Outline Size | 713(W)×410.5(H) ×1.3(D) mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Best View on | Symmetry |
| Glass Depth | 0.50+0.50 mm |
| Display Colors | 16.7M 69% NTSC |
| Frequency | 60Hz |
| Driver IC | COF Built-in 1 source chips |
| Panel Weight | 800g (Typ.) |
| Signal Interface | LVDS (1 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 12.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C |
| Panel Model | LSC320AN09-H |
| Panel Type | a-Si TFT-LCD , CELL |
| Pixel Format | RGB Horizontal Stripe |
| Bezel Opening | - |
| Surface | Antiglare (Haze 2%), Hard coating (2H) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Display Mode | SVA, Normally Black, Transmissive |
| Response Time | 20 (Typ.)(G to G) |
| Transmissivity | 6.9% (Typ.)(with Polarizer) |
| Lamp Type | No B/L |
| Touch Screen | Without |
